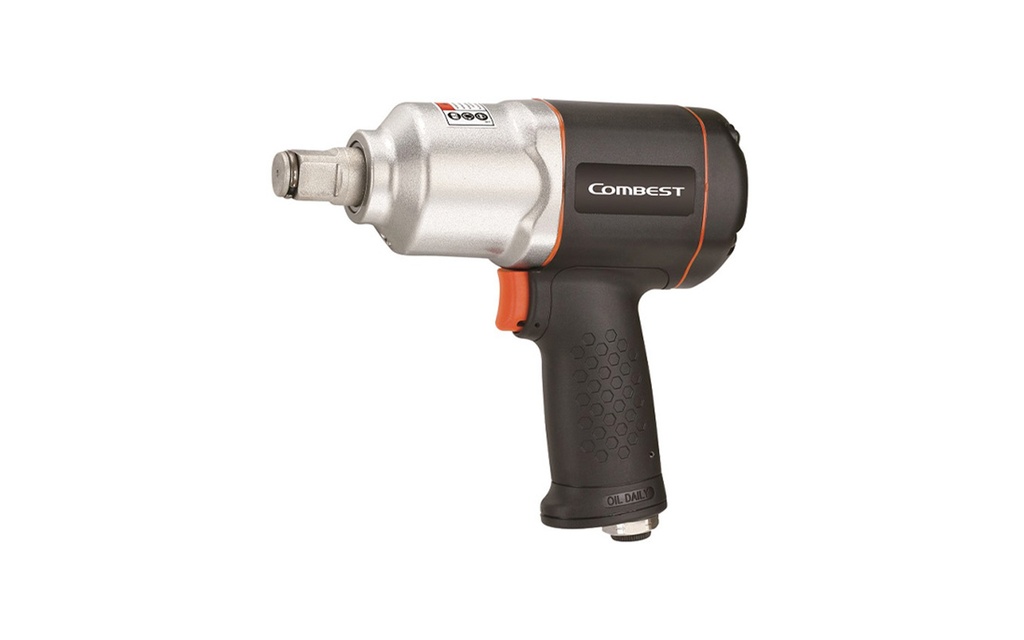

3/4" Composite Impact Wrench
CY-1301
| CY-1301 | |
|
Square Drive
|
3/4" |
|
Bolt Size Capacity
|
23mm(29/32")
|
|
Clutch Type
|
Twin Hammer
|
|
Working Torque
|
650 ft-lb (881 Nm / 5 s)
|
|
Max. Torque
|
820 ft-lb (1111 Nm / 15 s)
|
|
Exhaust Type
|
Front Exhaust
|
|
Air Inlet
| 1/4" |
|
Hose I.D. Size
|
3/8”(10mm)
|
|
Air Cons.
|
4.6 cfm( 132 l/min)
|
|
Free Speed
| 8500 rpm |
|
Air Pressure
|
6.3kg/cm² (90psi)
|
|
Vibration
|
<2.5m/sec ²
|
|
Sound Level
|
90.9 db
|
| Measurement | L195 mm(7.67") |
| Net Weight | 2.3 kgs(5 lbs) |
| Packing | 10 pcs / ctn / 1.6cu-ft / GW:25 kg |
