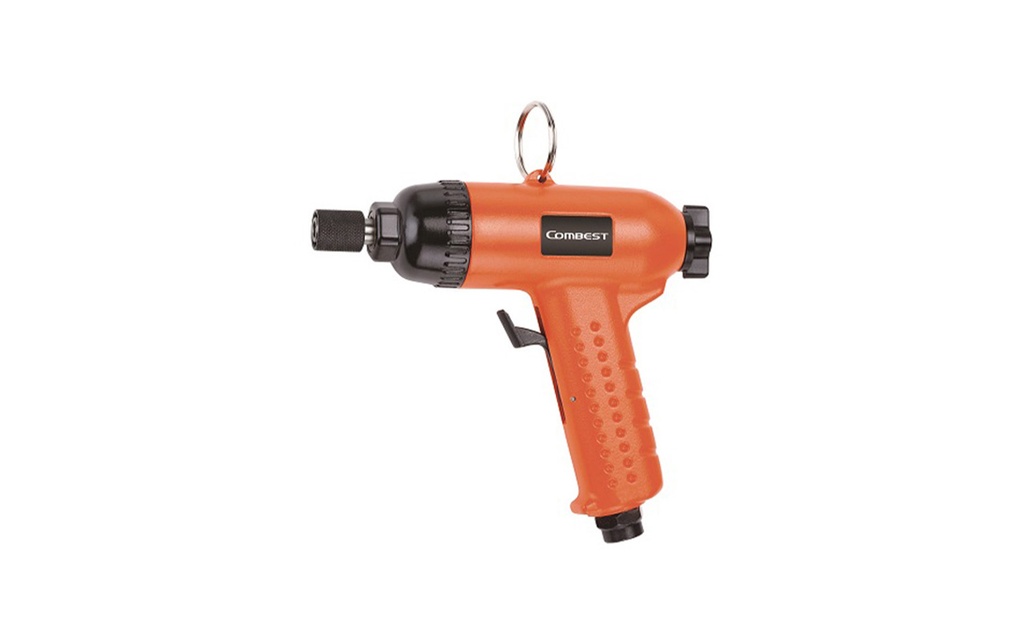

Air Screwdriver
CY-1701A
| CY-1701A | |
| Screw Size Capacity |
ø 6 mm
|
| Clutch Type |
Two Hammer Type
|
| Spindle Type |
L Type or S Type |
| Max. Torque |
37 ft-lb (50 Nm) |
| Exhaust Type |
Side Exhaust
|
| Air Inlet | 1/4" |
| Hose I.D. Size |
3/8”(10mm)
|
| Avg. Air Cons. |
8 CFM(226 l/min)
|
| Free Speed |
7500 rpm
|
| Air Pressure |
6.3 kg/cm² (90 psi )
|
| Vibration | <2.5 m/sec² |
| Sound Level |
94 dBA
|
| Measurement | L 190 mm (7.48") |
| Net Weight | 1.2 kgs (2.65 lbs) |
| Packing | 10 pcs / ctn / 1.1cu-ft / GW:15.8 kg |
