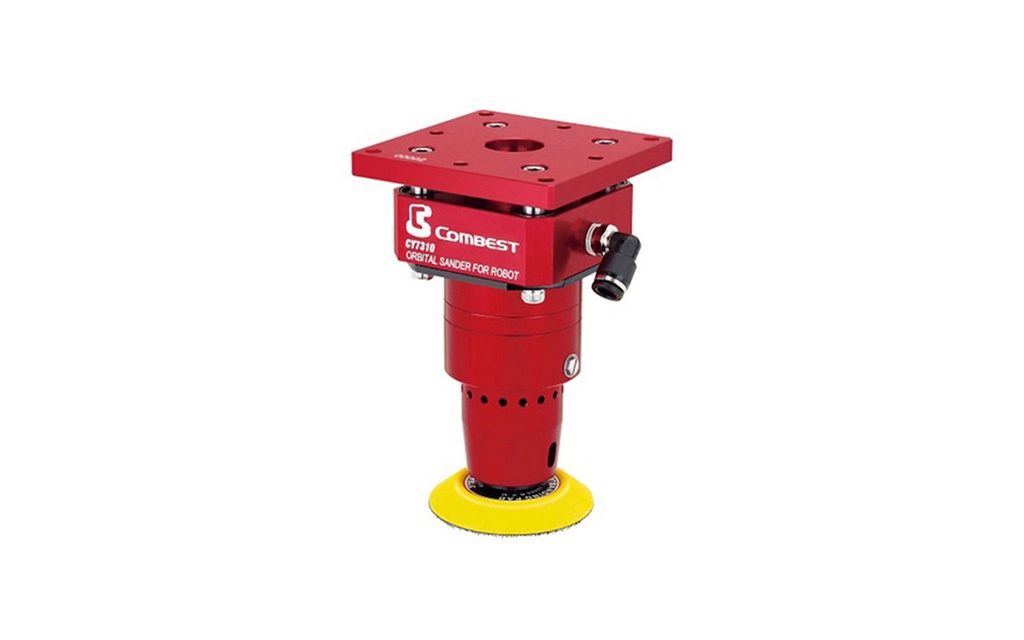

Floating Type Sander For Robot
CY-7310
| CY-7310 | |
| Pad Size |
3" (Option : 2")
|
| Tool Spindle Thread | M6 Female Thread |
| Orbit Diameter | 3 mm (3/32") |
| Free Speed | 15000 rpm |
| Range | 0-5 mm |
| Floating Pressure | 38 ~ 45 N(Option: 48 ~ 54 N and 60 ~ 70 N) |
| Hose O.D. Size | 8 mm (5/16") |
|
Hose O.D. Size
|
5 mm (3/16")
|
|
Air Pressure
| 6.3 kg/cm² (90 psi)
|
|
Avg. Air Cons.
|
0.4 m³/min (14.1 CFM)
|
| Vibration | <2.5 m/sec² |
| HP(W) | 0.2 (1150) |
| Pad Weight | 30 g |
| Measurement | L100 x W 100 x H165 mm |
| Net Weight | 1.67 kgs (3.67 lbs) |
| Packing | 6 pcs / ctn / 0.8cu-ft / GW:11 kg |
