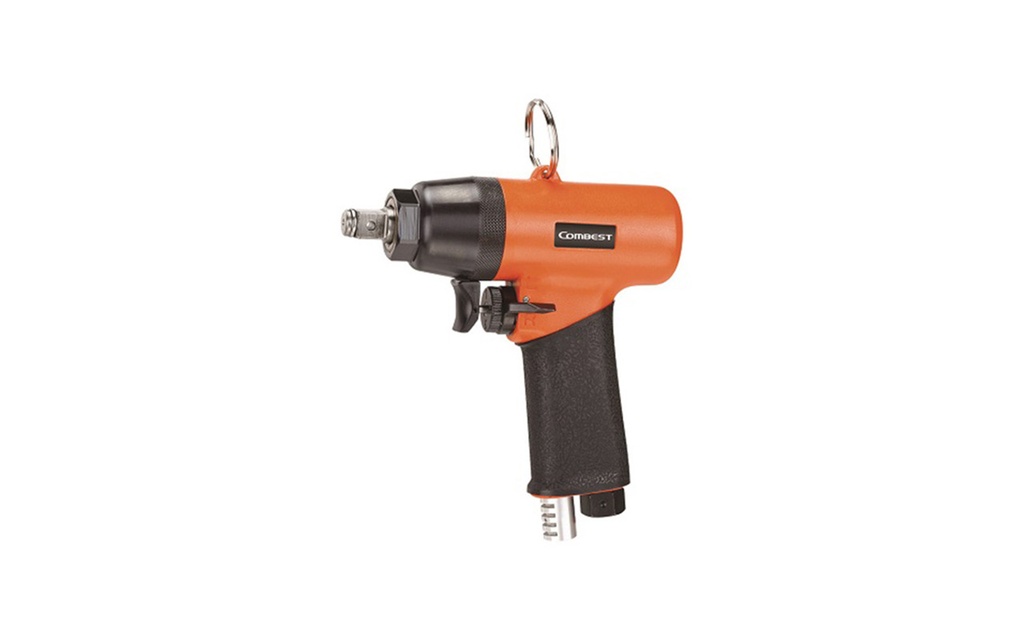

氣動衝擊扳手
CY-1203
| CY-1203 | |
|
Square Drive
|
1/2" |
|
Bolt Size Capacity
|
14mm (9/16")
|
|
Clutch Type
| Pin Clutch |
|
Working Torque
|
118 ft-lb (160 Nm / 5 s)
|
|
Max. Torque
|
221 ft-lb (300 Nm / 15 s)
|
|
Exhaust Type
|
Handle Exhaust
|
|
Air Inlet
| 1/4" |
|
Hose I.D. Size
|
3/8”(10mm)
|
| Air Cons. |
8 cfm( 226 l/min)
|
|
Free Speed
|
8,000 rpm
|
|
Air Pressure
| 6.3 kg/cm²
(90 psi )
|
|
Vibration
|
<2.5m/sec²
|
|
Sound Level
|
85 dB(A)
|
| Measurement | L166 mm (6.5") |
| Net Weight | 1.4 kgs (3.09lbs) |
| Packing | 10 pcs / ctn / 1.1cu-ft / GW:16.8 kg |
