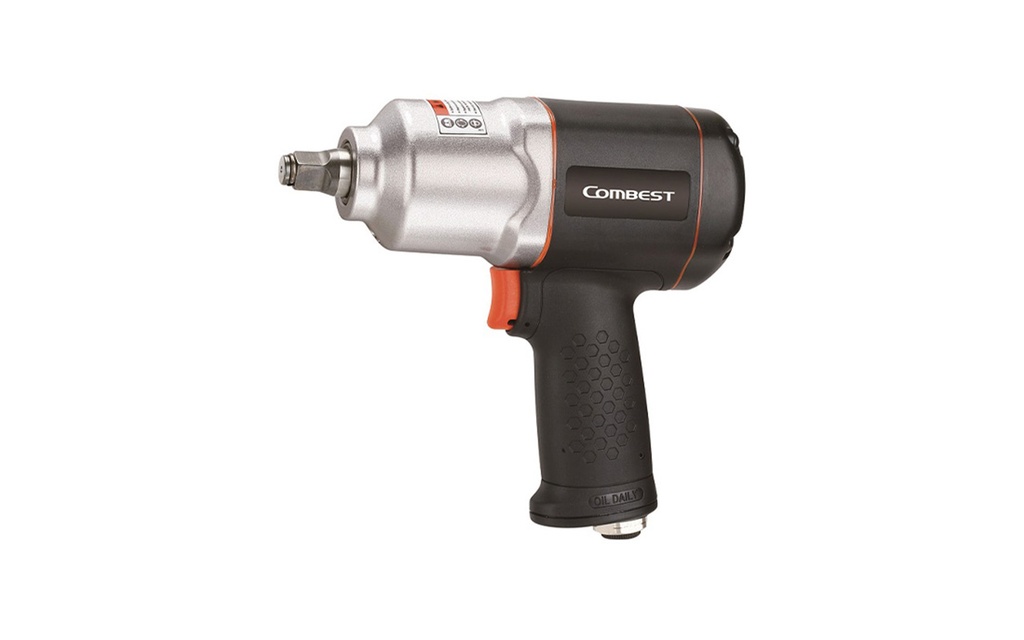

1/2" 塑鋼氣動衝擊扳手
CY-1207
| CY-1207 | |
|
Square Drive
|
1/2" |
|
Bolt Size Capacity
|
21mm(7/8")
|
|
Clutch Type
|
Twin Hammer
|
|
Working Torque
|
650 ft-lb (881 Nm / 5 s)
|
|
Max. Torque
|
820 ft-lb (1111 Nm / 15 s)
|
|
Exhaust Type
|
Front Exhaust
|
|
Air Inlet
|
1/4”
|
|
Hose I.D. Size
|
3/8”(10mm)
|
| Air Cons. |
4.6 cfm( 132 l/min)
|
|
Free Speed
| 8500 rpm |
|
Air Pressure
| 6.3 kg/cm²
(90 psi )
|
|
Vibration
|
<2.5 m/sec²
|
|
Sound Level
|
90.9 dB(A)
|
| Measurement | L168 mm(7/48") |
| Net Weight | 2.1 kgs (4.6 lbs) |
| Packing | 10 pcs / ctn / 1.6cu-ft / GW:30 kg |
