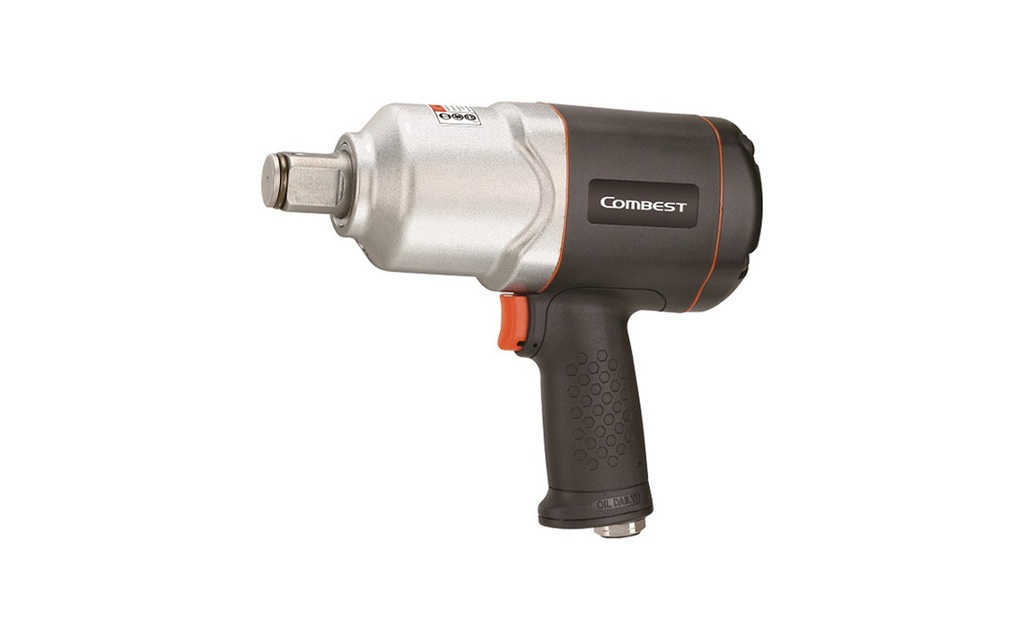

1" 塑鋼氣動衝擊扳手
CY-1400
| CY-1400 | |
|
Square Drive
|
1" |
|
Bolt Size Capacity
|
30 mm(1-3/16")
|
|
Clutch Type
|
Twin Hammer
|
|
Working Torque
|
1200 ft-lb (1627 Nm / 5 s)
|
|
Max. Torque
|
1500 ft-lb (2033 Nm / 15 s)
|
|
Exhaust Type
|
Handle Exhaust
|
|
Air Inlet
| 3/8" |
|
Hose I.D. Size
| 1/2" |
| Air Cons. |
7 cfm( 198 l/min)
|
|
Free Speed
| 5500 rpm |
|
Air Pressure
|
6.3kg/cm² (90psi)
|
|
Vibration
|
<2.5m/sec ²
|
|
Sound Level
|
96.9 db
|
| Measurement | L230 mm (9.05") |
| Net Weight | 3.8 kgs (8.3 lbs) |
| Packing | 6 pcs / ctn / 1.3cu-ft / GW:24.9 kg |
