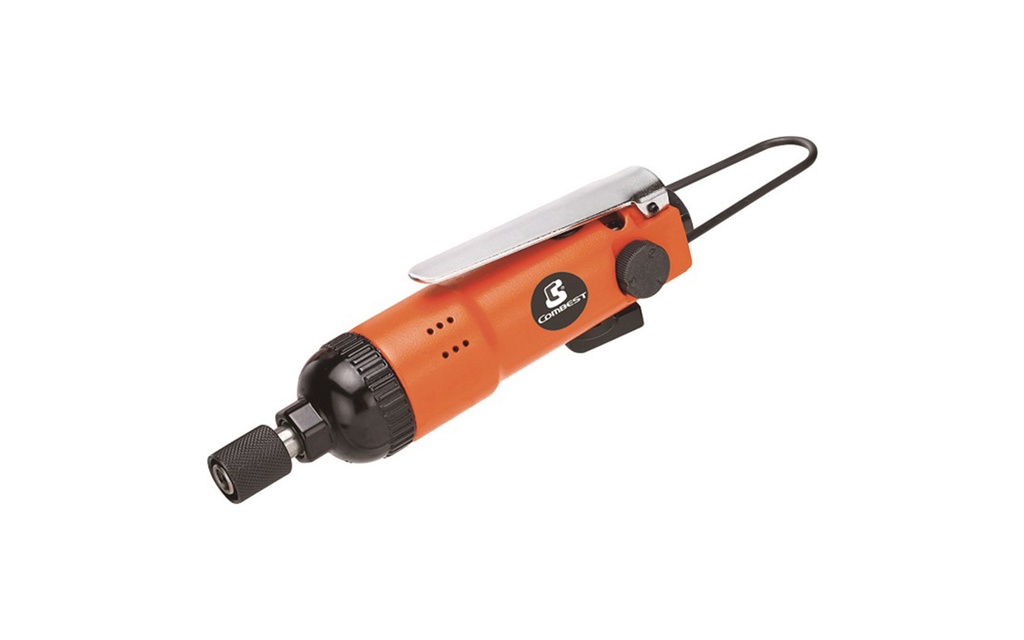

氣動螺絲起子
CY-1601A
| CY-1601A | |
|
Screw Size Capacity
|
ø 4~5 mm
|
|
Clutch Type
|
Two Hammer Type
|
|
Spindle Type
|
L Type
|
|
Max. Torque
|
26 ft-lb (45 Nm) |
| Exhaust Type |
Side Exhaust
|
| Air Inlet | 1/4" |
| Hose I.D. Size | 10 mm (3/8") |
|
Avg. Air Cons.
|
4.5 CFM(127l/min)
|
|
Free Speed
|
12000 rpm
|
|
Air Pressure
|
6.3 kg/cm2 (90 psi )
|
| Vibration |
<2.5m/sec2
|
|
Sound Level
|
88 dBA
|
| Measurement | L178 mm |
| Net Weight | 0.7 kgs (1.54 lbs) |
| Packing | 20 pcs / ctn / 1.1cu-ft / GW:17.7 kg |
* Other Type：Regular：CY-1601B
